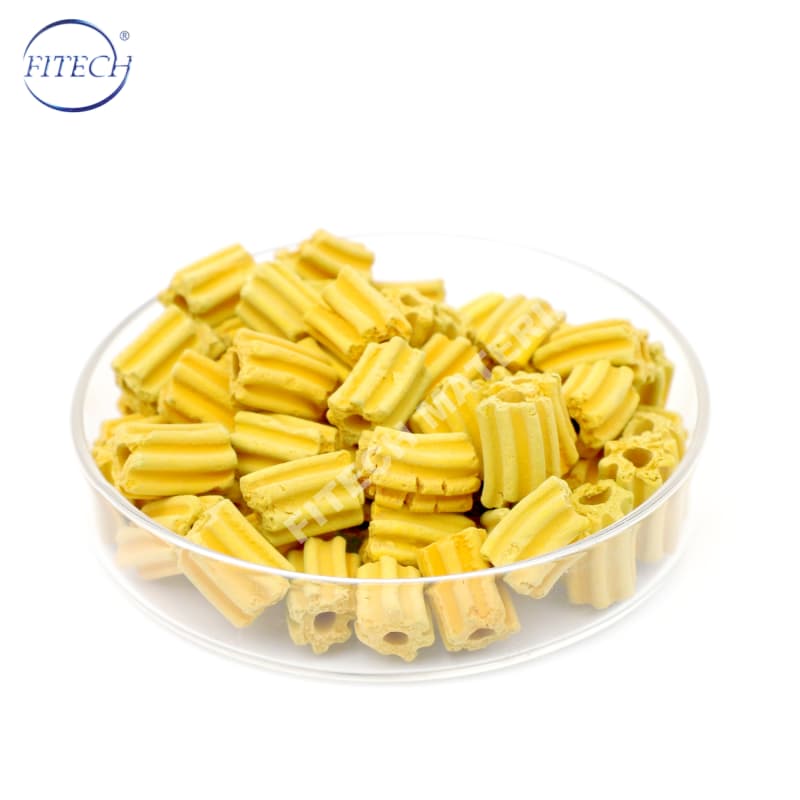

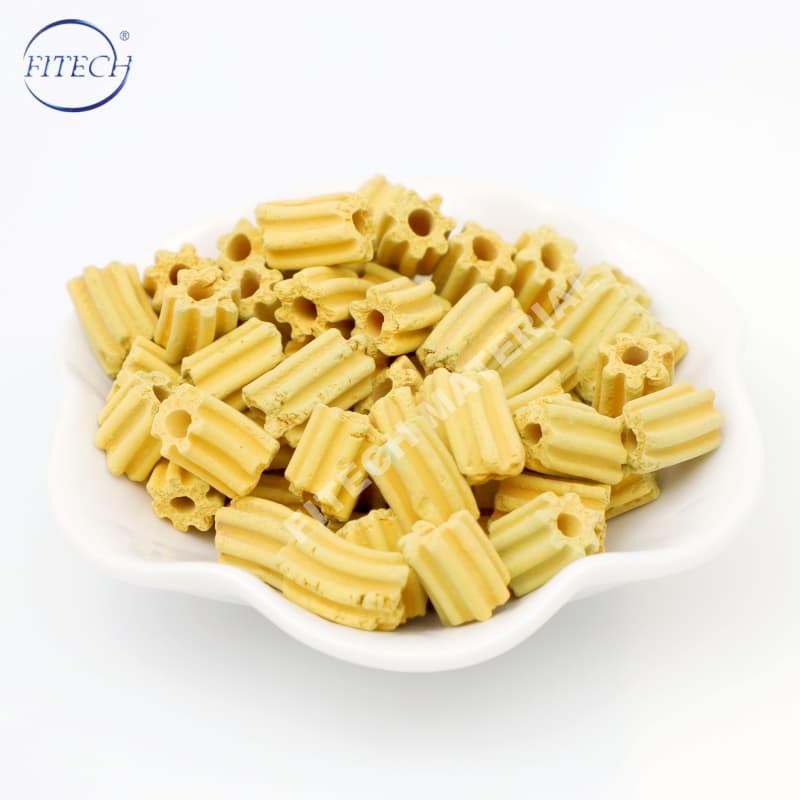

Our good quality Vanadium Pentoxide Catalyst with Cesium is usually contains 6% ~ 9% vanadium pentoxide (V2O5), which is the main component with catalytic activity. In addition to vanadium pentoxide, the catalyst also contains potassium oxide (K2O) or sodium oxide (Na2O) as co-catalyst to increase the activity of vanadium catalyst. Diatomite (mostly silicon dioxide) is used as the carrier to increase the surface area of the catalyst's active component in contact with the gas. Some vanadium catalysts also contain substances such as tin oxide, antimony oxide, iron oxide and alumina
分子式 :
V2O5 with CsHS编码 :
3815190000产地 :
China包装 :
200L iron drum外观 :
Yellow Daisy纯度 :
6~9%
Basic information
Sulfuric Acid Catalysis Used Vanadium Catalysts are used in the sulfuric acid industry to efficiently oxidize sulfur dioxide (SO₂) to sulfur trioxide (SO₃), FIT222M is a caesium catalyst, which contains much higher caesium than that of FIT218M, and it shows unmatched high activity throughout the entire operating temperature. When FIT222M installed on the top layer of the first bed, it can make the continuous operation temperature down to 370 ℃ and still maintains high SO2 conversion. When FIT222M installed in Bed 4 or Bed 5, it can greatly reduce SO2 emissions and increase production rates.
Specification
| Type | FIT111M | FIT118M |
FIT211M |
FIT218M |
FIT222M |
Shape | Daisy | ||||||
|
Chemical Composition
|
V2O5 | 7~9% | V2O5 | 6~8% | V2O5 | 6~8% | V2O5 | 7~9% | V2O5 | 7~9% | Color | Yellow | |
| K | 7~12% | K | 7~11% | K | 7~11% | HS Code | 3815190000 | ||||||
| Na | 1~2% | Na | 1~2% | Na | 1~2% | Type | FIT111M/FIT118M/FIT211M/FIT218M/FIT222M | ||||||
| Cs | 4~10% | Package | 200L drum | ||||||||||
| Strength | 40N/cm min | 40N/cm min | 40N/cm min | 40N/cm min | 40N/cm min | ||||||||
|
Diameter (Outer/Inner)
|
13/3.5~4.5mm | 11/3~4mm | 11/4mm | 11/4mm | 11/4mm | Pallet | 4 drums per pallet | ||||||
|
Length
|
12~17mm | 12~17mm | 12~17mm | 12~17mm | 12~17mm | ||||||||
|
Attrition Loss
|
5%max | 5%max | 5%max | 5%max | 5%max | Loading | 16CBM per 1×20'FCL | ||||||
|
Approximate Bulk Density
|
420~500kg/m3 | 420~500kg/m3 | 380~430kg/m3 | 380~430kg/m3 | 380~430kg/m3 | ||||||||
|
Light-off temperature
|
370°C | 370°C | 360°C | 360°C | 360°C | Active Ingredient | Vanadium Pentoxide | ||||||
|
Operating Temperature
|
400~630°C | 400~550°C | 400~630°C | 400~630°C | 400~630°C | ||||||||
|
Measured Activity after
Temperature Resistance
|
91%min (485 ℃) |
50%min (410 ℃) |
- | - | - | Origin | China | ||||||
|
Gas Concentration (SO2)
|
- |
- | 0~15% Mole | 0~15% Mole | 0~15% Mole | Application | Sulfuric Acid Catalysis | ||||||
|
min O2/SO2 Ratio
|
- |
- | 0.6mole/mole | 0.6mole/mole | 0.6mole/mole | ||||||||
Application
1. Sulfuric Acid Industry: Catalyzing the oxidation of SO₂ to SO₃;
2. Environmental Protection (NOx removal from flue gas): In SCR technology, catalyzing the reduction of NOx to N₂;
3. Organic Chemical Industry: Catalyzing selective oxidation reactions of hydrocarbons to produce various important chemical intermediates;
4. Inorganic Chemical Industry: As a raw material for the production of other vanadium chemicals.
Packing
Certificates
The products have been approved by FDA,REACH,ROSH,ISO and other certification, in line with national standards.
Factor
y
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
